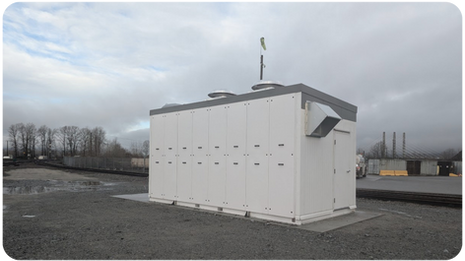

The Original Modular Build
Offers full protection from harsh weather while ensuring optimal internal temperatures year-round. Delivers simplified installation, fully accessible paneling, and power upon delivery.
With a self-contained footprint, the MAPS build is easily expandable and fully mobile. It offers fast installation, cost-effective and dependable air, and allows you to be ready for production immediately upon delivery. Configurable for single, dual and triple compressor builds.
Standard: Insulation Range (°F): 0–120
Arctic: Insulation Range (°F): -49–120
01
Custom Engineered
Each MAPS Original system is engineered to meet specific site requirements, integrating compressors, air treatment, controls, and storage into a single build. Designed for reliability, efficiency, and long-term adaptability.
02
Delivered Ready to Power
Every unit arrives fully assembled, wired, piped, and tested—requiring only power and a header pipe. This reduces installation time, minimizes site disruption, and enables fast, predictable startup.
03
Fully Scalable
MAPS Original systems are designed to scale with demand. Flexible configurations allow capacity to be added without reworking existing infrastructure, supporting both immediate needs and future growth.
SPECS & CUSTOMIZATIONS
Precision Engineering,
Expert Craftsmanship
Built by our in-house engineering and manufacturing teams within a 52,000 sq ft facility. Fabricated and tested under one roof to deliver consistent performance and streamlined installation.
Integrated Air Storage
Pre-installed receiver provides stable pressure and supports peak demand. Improves system efficiency and overall performance.
Engineered Ventilation
Designed airflow maintains consistent internal temperatures and manages heat load to protect equipment and ensure reliability.
Protected Air Intake
Weather-shielded intake prevents debris and environmental exposure while supporting consistent, long-term performance.
Accessible Paneling
Removable, lockable panels provide safe, efficient access. Durable finishes ensure long-term protection in industrial environments.
15-unlimited
Available Horsepower Range
-49-120
Insulation Range (°F)
200-800
Enclosure Footpring
(sq. ft.)
SPECS & CUSTOMIZATIONS
Build Specs
EQUIPMENT
STANDARD
CUSTOMIZE
Roof
Pitched Roof
Standard
Doors
Lockable Door
Oversized Doors Available
Equipment Access Panels
Removable Lockable Access Panels
Standard
Ventilation Panels
Automated Aluminum Louvers
Air Intake Covers
Floor
Diamond Plated Steel Floor
Full Containment, Precast Concrete
Exterior
Paint Color
Steel Grey, MAPS Blue or Pure White
Fully Customizable
Paint Description
Marine Grade
Standard
Lighting
Dusk to Dawn LED
Exterior - Motion Activated Available
Custom Logo
Distributor or End User Logo
-
Unit Mobility
4 Lifting Brackets on Corners for Crane Lifting
Standard
Ventilation
Thermostatically Controlled Ventilation
PLC Automated System Available
Piping
Aluminium Piping System
Carbon/Black & Stainless Steel (Welded/Threaded), ProPress
Indoor Heating
5 kW Elec. Heat, Int. Recirc. (Comp.)
Standard
Electrical
NEMA 3
Standard
Filter
Filtration on the Air Inlet
Removable and Washable Filters Available
Interior
Lighting
Indoor Lighting LED-Switched
Standard
Insulation
2" Thermal Foam Insulation
Arctic 4" Foam Insulation (Rated to -50°F)
Outlet 120 V
120 V 10 Amp Convenience Plug
Standard
Fire Protection
Alarms and ANSUL Available
Cabinet Heaters
Available
Condensate Piping Low Ambient
Heat Trace & Insulated Piping (Alum. Jacket) Available
Climate Control
Available
Add't
Multi-Module MAPS Build
(as shown, 600 HP)
Tri System Compatible MAPS
(as shown, 100 - 200 HP)
Dual System Compatible MAPS
(as shown, 40 - 50 HP)
Single Compressor MAPS Enclosure
(as shown, 50 HP)
BUILD + COMMISSIONING
Built to Perform
Delivered Ready to Power
From in-house engineering and fabrication to delivery and field commissioning, each system is developed as a complete, integrated package. Built for efficient installation and long-term reliability, units are delivered ready for immediate connection and operation.
01
Define Specifications
-
System requirements and performance targets
-
Site conditions and constraints reviewed
-
Supports client or MAPS-led engineering
02
Engineering & Design
-
Integrated system layout and design
-
Equipment selection and sizing
-
Production-ready drawings developed
03
Fabrication
-
Built in our dedicated 52,000 sq. ft. facility
-
Pre-tested and shipped ready to power
04

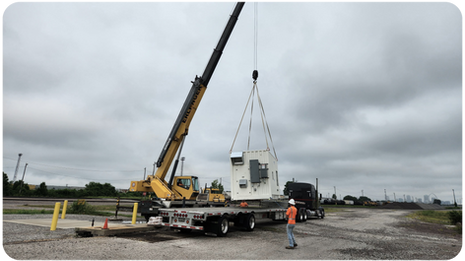

Delivery
-
Transported by MAPS delivery teams
-
Positioned for site-specific requirements
05
Commissioning
-
Electrical connection and startup
-
Rapid commissioning, often same-day
